A sketch on Monday. A part in your hand on Tuesday.
Parametric history modeling, assemblies that hold their mates, and the maker end of the pipeline built in, not sold back to you as an add-on.
- 01Sketch

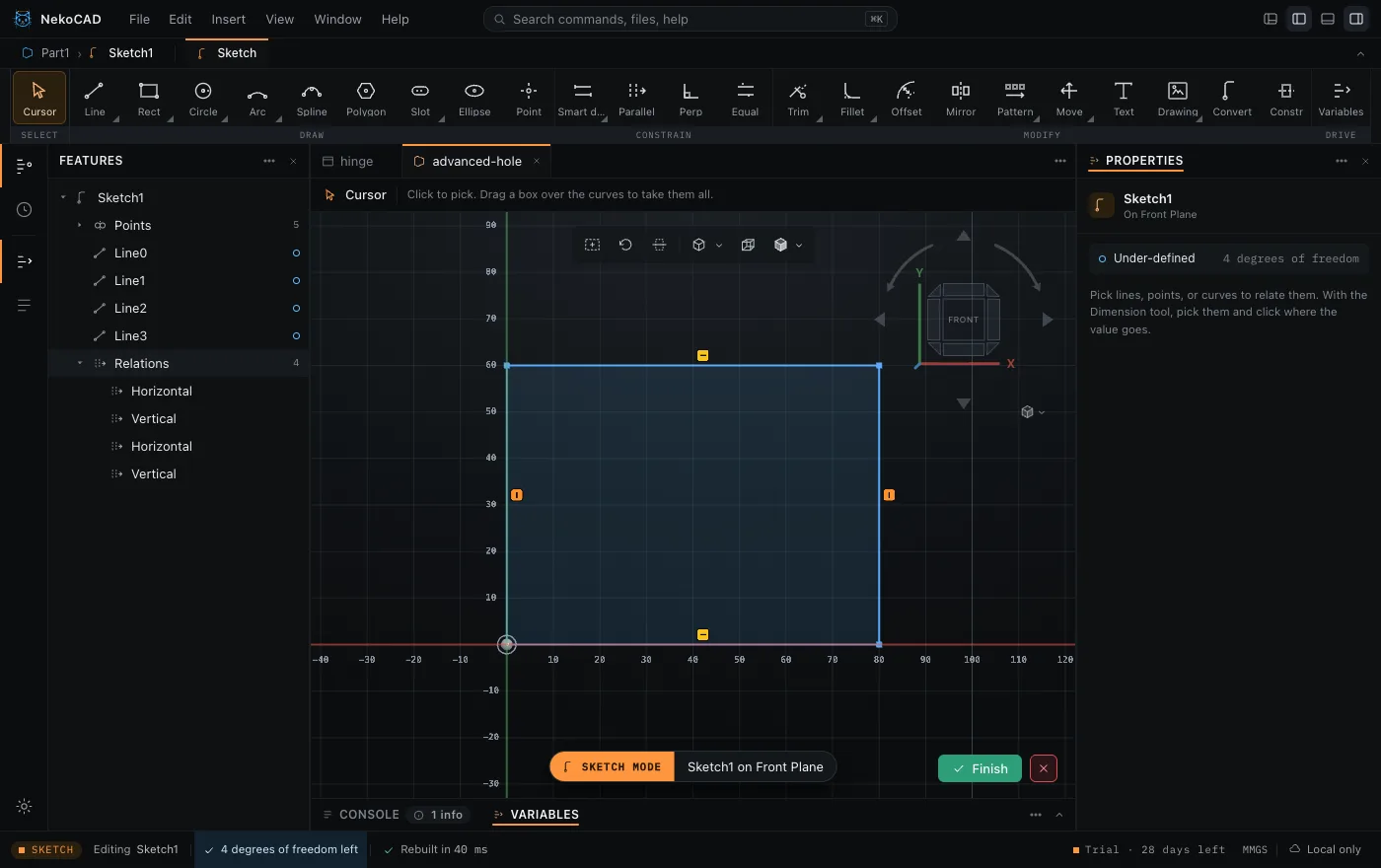

Draw on a plane, lock it with relations and dimensions. A fully defined sketch says so.
- 02Solid
Extrude, revolve, fillet, chamfer, shell, pattern, and mirror. Roll the tree back and rebuild.
- 03Assembly

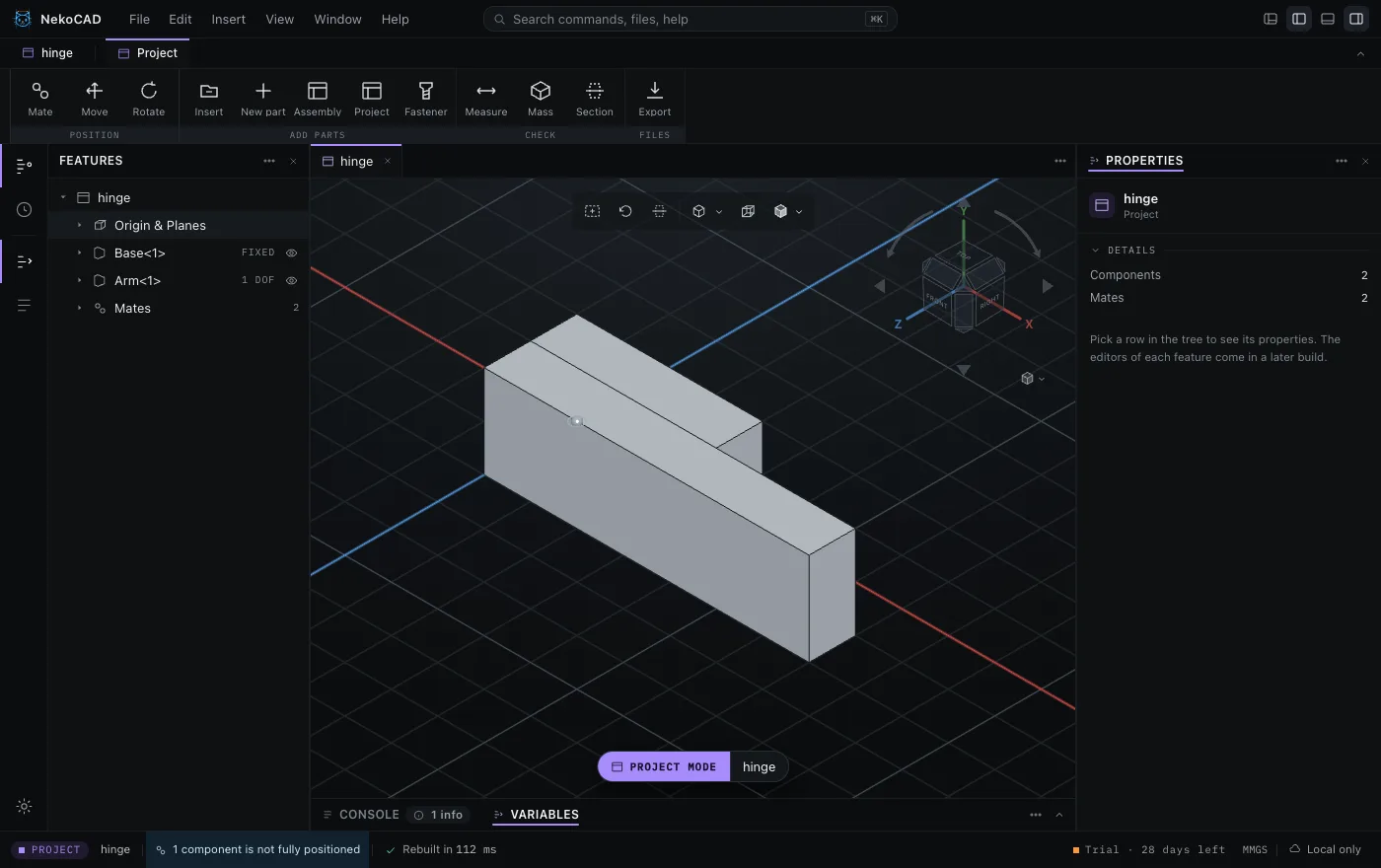

Mate the parts, see what each part can still move, and drag it to check the fit.
- 04Drawing
Views, sections, dimensions, and a title block. PDF and DXF for the shop.
- 05Print it
Supports for resin and FDM, 3MF and STL for the slicer, STEP for everyone else, DXF and SVG for the laser.
Supports that move when the part does
Usually supports happen in the slicer, on a mesh that has no idea how it was made. Change one dimension and you start over. In NekoCAD the supports are part of the project, so each tip moves to the new surface when you edit the part, and one undo takes both back. If a tip has nowhere to go, it turns orange and the tree tells you which one.
- Auto supports for resin, with trunks, braces, and mini supports
- Auto orient that scores its choices: fewest supports, least peel, or lowest height
- Hollow with drain holes, and rafts of eleven kinds
- Magic: orient, support, brace, and raft in one step that undoes as one
- Batch a folder of STL, 3MF, OBJ, and .nko files, with a report

Resin: one press of Magic
Magic orients the part, supports it, braces the supports, and puts it on a raft, in one step that undoes as one.

FDM: paint it, or grow the tree
Paint where a support must go and where it must not, and NekoCAD writes a painted 3MF that PrusaSlicer, OrcaSlicer, and Bambu Studio read, or support meshes for Cura. Or let NekoCAD grow tree supports itself, and open the result in your slicer from the app.
A drawing for the shop, from the same file
Front, top, side, and isometric views, section and detail views, dimensions, and hole callouts. The title block fills itself from the part. Change the model, and the drawing follows.

More than 50 templates to start from
Each template opens as a project of its own, driven by variables. Change a number in Customize, and the whole part follows. Insert one into a project, and it comes in as a sub-assembly.
- Gridfinity baseplates and bins, openGrid, and Multiboard
- Cases for the Raspberry Pi, Arduino Uno, Pico, and ESP32
- Spur gears, a gear pair, and a rack and pinion
- Boxes with a pin hinge, a living hinge, a snap hinge, or magnets
- Pegboard and Skadis hooks, knobs, holders, and a full set of dice
The solver tells you the truth
Snaps, construction lines, and dimensions, with a state you can read at a glance: fully defined, under-defined, or over-defined. A dimension that would over-define the sketch becomes a driven one, and says so.

Built for the machine in your garage
A hole wizard with real fastener standards, threads that match the tap in your drawer, and a fastener library. Laser work flattens to DXF or SVG. Mass and filament estimates come before you commit a print.
- ISO and UNC tables, with close, normal, and loose fits
- Modeled threads that a tap matches, and cosmetic threads that draw fast
- Screws, nuts, and washers that size themselves to the hole they go in
- 3MF with bodies and colors, for a printer with more than one filament
- Mass and a filament estimate before the print, not after it
Turn it yourself
That is a file from the app, rebuilt by the same kernel and drawn in your browser. Drag it. The thread is cut geometry, so it prints and it measures, and the countersinks on the showcase page are the same kind of thing.
Everything that is in the box
Not a plan, and not a wish. Every line below is in the app today, and each one has a commit behind it in the changelog.
Sketch
- Lines, arcs, circles, rectangles, polygons, slots, ellipses, and splines
- Relations and dimensions, with the degrees of freedom always in view
- Trim, fillet, offset, mirror, and pattern inside the sketch
- Text and an SVG or DXF drawing, placed as one block you can size and turn
Solid
- Extrude, revolve, sweep, loft, boundary, and helix
- Fillet, chamfer, shell, draft, rib, stud, and intersect
- A history you can roll back, and a rebuild that says what broke
- Reference planes, axes, points, and coordinate systems
Repeat
- Linear and circular patterns, and a fill that spaces a face for you
- Square, staggered, polygon, and circular fills
- Skip an instance, pattern along a curve, or pattern around an edge
- Mirror across a plane, a face, or a reference plane
Holes and fasteners
- Counterbore, countersink, tapped, and heat set insert
- ISO and UNC tables, with close, normal, and loose fits
- Modeled threads that a tap matches, and cosmetic threads that draw fast
- Screws, nuts, and washers sized to the hole they go in
Assembly
- Components and mates, with the degrees of freedom left on each part
- Joints, gear and rack couplings, motion studies, and exploded views
- An interference check that also finds the parts that touch
- Edit a part in place, with the rest of the assembly around it
- Sub-assemblies that stay linked to their own file
Inspect
- Measure, and mass properties with a filament estimate
- Up to three section views at once, with capped faces
- Materials and appearance colors, per part and per face
- A console that says what happened in plain sentences
Files
- STL, 3MF with colors, OBJ, STEP, IGES, and glTF
- DXF and SVG of a sketch or a face, for the laser
- Import every format that NekoCAD reads, as a reference body
- Open in your slicer, straight from the app
Supports
- Resin and FDM print setups, saved in the project
- Auto supports, trunks, braces, and supports that you paint
- Hollow with drain holes, and rafts of eleven kinds
- Supports that follow the model when you edit it
Drawings
- Standard, isometric, section, and detail views
- Dimensions, hole callouts, and a title block that fills itself
- First or third angle, on A4, A3, Letter, or Tabloid
- PDF, DXF, and print
Templates
- Gridfinity, openGrid, Multiboard, pegboard, and Skadis
- Cases for the Raspberry Pi, Arduino Uno, Pico, and ESP32
- Gears, hinged boxes, knobs, holders, and a full set of dice
- Each one driven by variables that you change in Customize
The workbench
- A command palette on one key, scoped to what you are doing
- Units per document: mm, cm, in, or ft
- Variables and equations, with math in every field
- Autosave, crash recovery, and recent files on the home screen
Yours to keep
- One .nko file on your disk, with the assembly and its history
- Every release opens the files of every release before it
- Files open from your disk, with no cloud in the way
Hand the model to an agent
NekoCAD opens the document to an AI agent over MCP. Your agent can sketch, add features, measure, and read the tree. The History panel keeps the session in one row, so one click goes back to where it started.
A file format that keeps its promise
A project is one .nko file on your disk: the assembly, its parts, and the history. Each release opens the files of each version before it, and a test suite of saved projects holds that rule.
How it compares
Facts, no jabs. Where NekoCAD is behind, the table says so.
| Feature | NekoCAD | SOLIDWORKS for Makers | Fusion | Onshape | Alibre Atom3D | Plasticity |
|---|---|---|---|---|---|---|
| Works offline | Yes | 30 days | partly | No | Yes | Yes |
| Files on your disk | Yes | opt in | cloud first | No | Yes | Yes |
| Windows, macOS, and Linux | all three | Windows | Win, Mac | browser | Windows | all three |
| Sketch relations and feature tree | Yes | Yes | Yes | Yes | Yes | No |
| Document limits | none | none | 10 editable | public only | none | none |
| Simulation and CAM | No | add-ons | Yes | Yes | add-ons | No |
| Real-time co-editing | No | partly | partly | Yes | No | No |
NekoCAD does not do simulation, CAM, or live co-editing today. If one of those decides it for you, Fusion, Onshape, or SOLIDWORKS is the better tool, and we would rather you knew now. Read the row that matters to you, not the column we shaded.
Try it before the beta opens
NekoCAD is in a closed beta on Windows, macOS and Linux. The browser demo has the same tools, with no install and no account.
